Your current location: Home > Product > Photovoltaic (PV) Brackets
Photovoltaic (PV) Brackets
  • Photovoltaic (PV) Brackets
  • Photovoltaic (PV) Brackets
Back to list

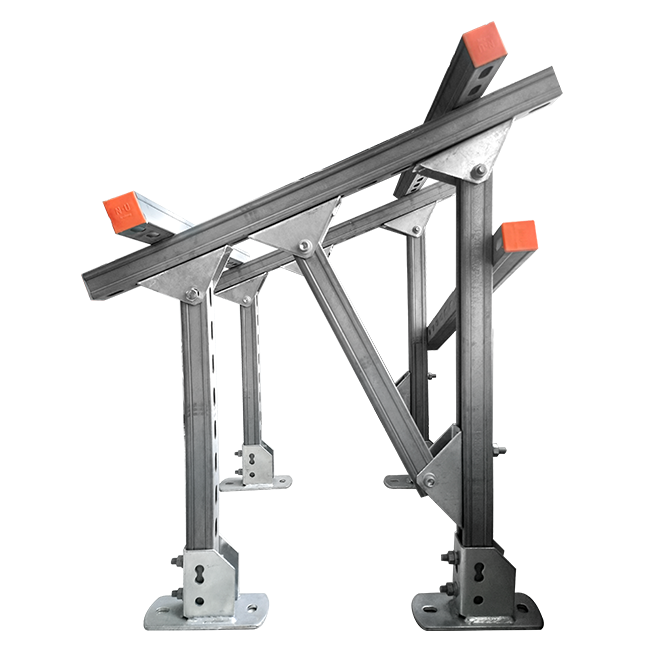

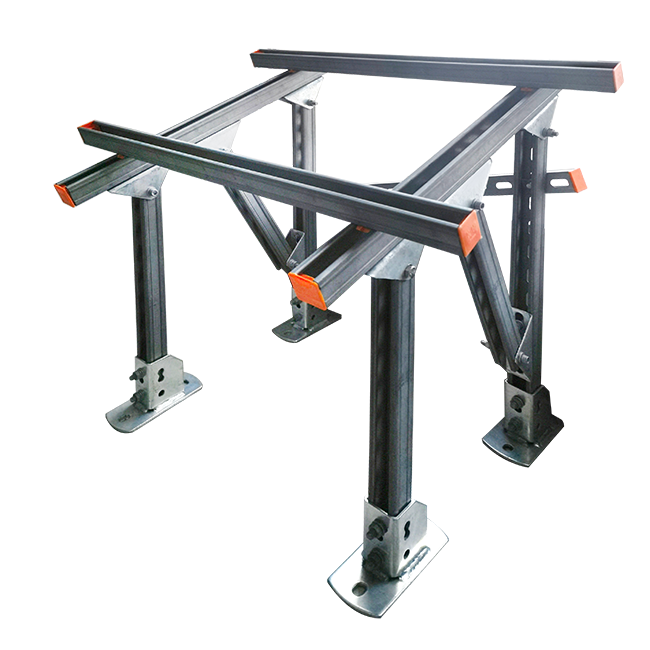

Photovoltaic (PV) Brackets

Product Specifications: Zinc-Aluminum-Magnesium Support, Hot-Dip Galvanized Support, Aluminum Alloy Support
Design Standards: GB 51101, GB 50018
Material Grades: Q235B, S350GD, 6005-T5
Size Range: 30mm-150mm

Product description
Meide Archung's photovoltaic bracket material is mainly hot-dip galvanized, zinc aluminum magnesium, stainless steel, aluminum alloy material, the use of a new type of high corrosion resistance coated steel, the composition of its galvanized layer is mainly based on zinc, composed of zinc, aluminum, magnesium and trace amounts of silicon. Due to the compound effect of these added elements, its corrosion-resistance is further improved. The product has excellent processing performance under severe conditions (stretching, stamping, bending, painting, welding, etc.), high hardness of the coating, and excellent resistance to damage. Compared to conventional galvanized and aluzinc plated products, it achieves superior corrosion resistance with less coating adhesion, and meets the performance of photovoltaic power plants over their entire lifespan.
Customer challenge
Limited by construction experience
Large-scale PV power plants face challenges such as high material volumes, tight deadlines and variable workforce expertise.
High requirements for longevity and quality
Photovoltaic power plants are engineered for a minimum 25-year service life in harsh outdoor environments exposed to extreme weather conditions, require strict product performance.
Easy to corrode and short life
Traditional Product Limitations On-Site Modifications: Field cutting and secondary processing damage the corrosion protection layer, significantly reducing product lifespan.
Product function
Precision Prefabrication
Corrosion Resistance
Rapid Installation
Products are pre-processed in the factory, eliminating on-site secondary processing and preserving the corrosion protection layer.
Zinc-Aluminum-Magnesium (Zn-Al-Mg), hot-dip galvanized, and aluminum alloy materials offer excellent corrosion resistance for long-term power plant use.
Modular and standardized components ensure convenient and efficient installation.
Value advantage
  • In-House Hot-Dip Galvanizing Line
    In-House Hot-Dip Galvanizing Line
    Proprietary industry-leading eco-friendly digital hot-dip galvanizing line, intelligent, efficient, and quality assured.
  • Full Performance Testing
    Full Performance Testing
    Comprehensive testing equipment ensures physical performance of raw materials, finished products, and semi-finished products.
  • Dedicated Machinery Production
    Dedicated Machinery Production
    Bracket accessories are produced with dedicated machinery, ensuring zero deviation from standards.
  • Automation
    Automation
    Robotic welding guarantees quality and aesthetically pleasing welds.
  • Standardization
    Standardization
    Automated production lines ensure standardized processes.
  • Easy and Fast Installation
    Easy and Fast Installation
    Modular and standardized accessories enable convenient installation and efficient construction.
Application scenario

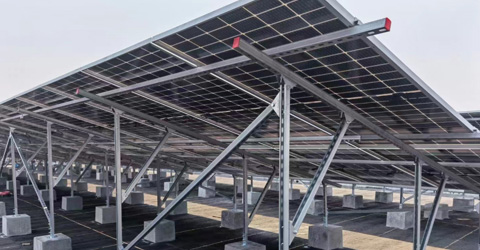

Commercial/Industrial Rooftop Mounting Systems
Commercial/Industrial Rooftop Mounting Systems

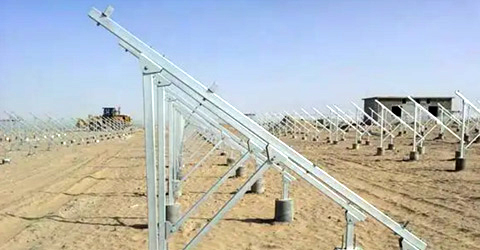

Ground-Mounted Centralized PV Mounting Systems
Ground-Mounted Centralized PV Mounting Systems

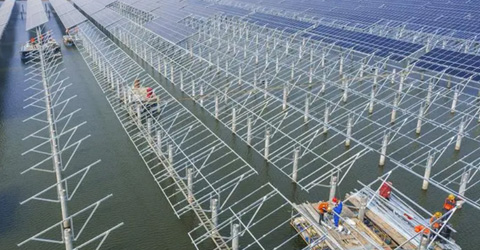

Other PV Mounting Types: Flexible Mounting Systems, Aquaculture-Photovoltaic Integration (Fishery-Solar Hybrid), Agri-Photovoltaic Integration (Agriculture-Solar Hybrid)
Other PV Mounting Types: Flexible Mounting Systems, Aquaculture-Photovoltaic Integration (Fishery-Solar Hybrid), Agri-Photovoltaic Integration (Agriculture-Solar Hybrid)
Relevant data
All resources
Technical parameters
Certification information
File name File Size Operation
Plating thickness test report 292.30K
CNAS test report 258.50K
Bracket parameters 205.64K
File name File Size Operation
Plating thickness test report 292.30K
Bracket parameters 205.64K
File name File Size Operation
CNAS test report 258.50K
